YRT50 High Precision Axial/radial bearings ,YRT Series Rotary table bearing
YRT rotary table bearings is particularly suitable for the situation of high precision, high stiffness, low speed, and short rotate period such as rotary table, index heads and revolving milling heads.

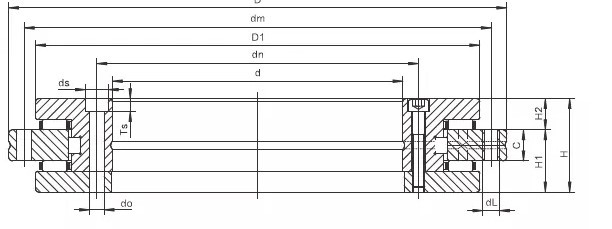

YRT basic rotary table bearings are designed with a radial full roller, two groups of axial needle roller, cage assembly, an out ring, an L-section inner and the second ring. The out ring and inner ring have fixing holes, so the bolt can fix the bearings directly. YRT rotary table bearing structure can bear double-direction axial load, radial load and tilting moment. This series bearing have preload before leaving factory, no need to adjust clearance when installed.(HONBbearing02)

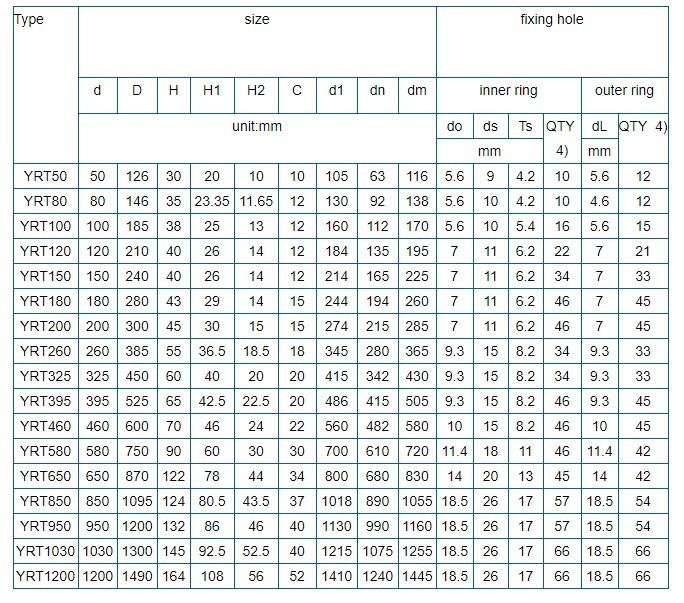

Parameter list
Why chosse HONB ?
1.Products Advantages
HONB bearing possesses the characteristics of high precision, high reliability and long life.
Accept customized products, accept OEM / ODM.
2.Fast Delivery
From YRT50~YRT650, we have enough stocks of parts.
The lead time is within 7 days.
3.Good service
Pre-sales technical support, after-sales technical guidance communication, 24 hours online.
4.Warranty
QC team inspect the product from original process to final packing according to drawing detail.
YRT products, we offer 2 years warranty, if bearing problems, we replace new bearing at DDP cost.

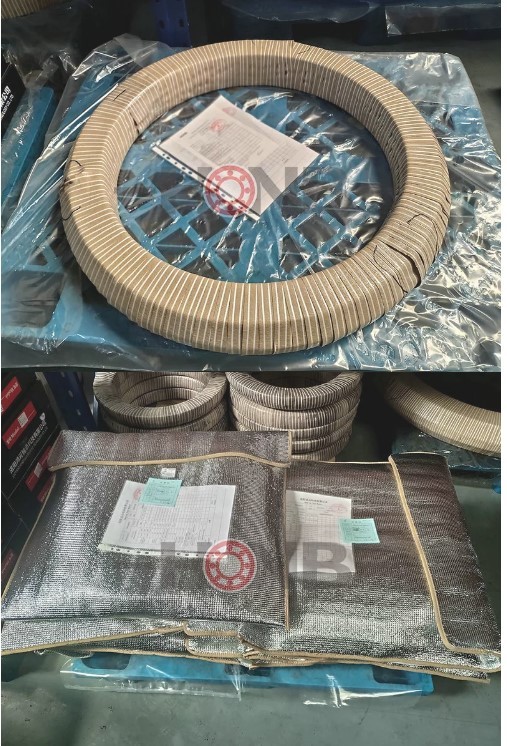

Packaging & Shipping

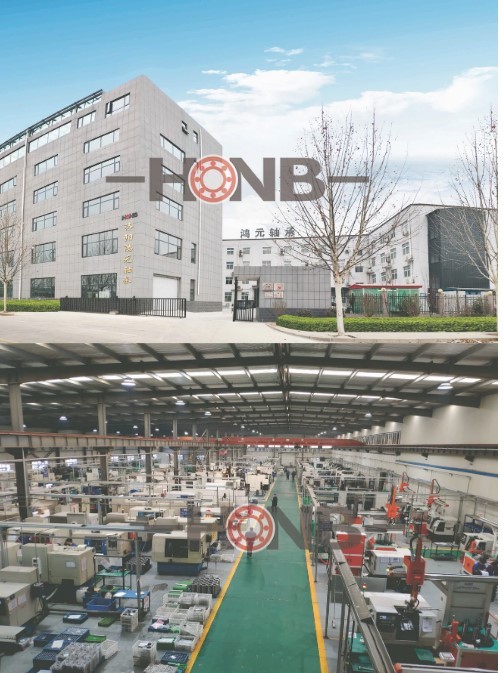

Company Information
Luoyang Hongyuan Bearing Technology Co., Ltd. (HONB) was established in December 2005, located in the Luoyang ,China. HONB with more than 300 employees which specializes in manufacture of rotary table bearings, crossed roller bearings and robot reducer bearings. The precision grades are P2, P4 and P5, and the size range is 20mm ~2000mm.
